**Coming Soon - Q2***

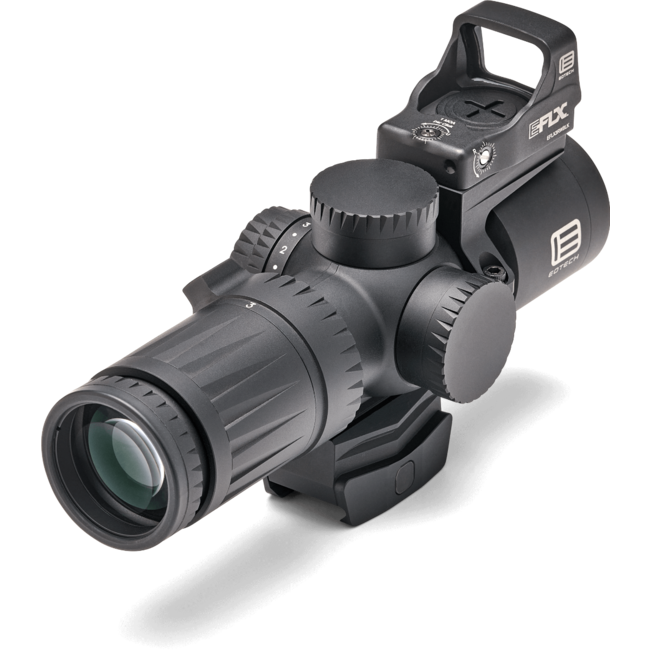

Vudu 3-9x32 Riflescope with EFLX & Ring Mount
The super short Vudu® 3-9x32 riflescope might just be the perfect optic.
Read more..
The super short Vudu® 3-9x32 riflescope is crafted from aircraft-grade aluminum for lightweight durability. Measuring just 6.8", it is fog, water, and shock resistant, with capped ¼ MOA turrets and a second focal plane design. An illuminated reticle with 10 brightness settings runs up to 300 hours on a CR2032 battery. Its integrated base is compatible with mini-ACOG mounts.
For added versatility, a version with a ring mount and EFLX™ sight allows non-magnified targeting, mountable at the top or 45-degree angles for dynamic use.
6.8" (172.7mm)
1.56" (39.7 mm)
16 oz (454 g)
3-9x
Yes, HC1
32 mm
CR2032
3X: 2.5-3.1" (64-81 mm)
9X: 2.3-3.1" (59-79 mm)
3X: 38 ft (11.6 m)
9X: 12.7 ft (3.9 m)
Made in Japan
The HC1 is a second focal plane MOA- based hashmark reticle that was designed for the precision long-range shooter. The non-illuminated crosshairs allow for elevation and windage correction, while the ultra-small center aiming dot (0.15 MOA at 32X) provides the utmost accuracy. The HC1 is an excellent choice for precision long-range shooting such as bench rest, F-class and small game dog hunting.
RETICLE SPECIFICATIONS(MOA) | HC1 |
| ADJUSTMENT GRADUATION PER CLICK | 0.25 |
| ADJUSTMENT GRADUATION PER ROTATION | 30 |
| TOTAL ELEVATION TRAVEL | 90 |
| TOTAL WINDAGE TRAVEL | 60 |
RETICLE DIMENSIONS(MOA) | 3x | 9x |
|---|---|---|
| CENTER DOT DIAMETER | 3.60 | 1.20 |
| LINE THICKNESS | 1.20 | 0.40 |
| SPACE BETWEEN HASH MARKS | 6.00 | 2.00 |
| LENGTH OF SHORT HASH MARKS | 7.50 | 2.50 |
| LENGTH OF LONG HASH MARKS | 15.00 | 5.00 |
| (MOA) | 3x | 9x |
|---|---|---|
| CENTER DOT DIAMETER | 3.60 | 1.20 |
| LINE THICKNESS | 1.20 | 0.40 |
| SPACE BETWEEN HASH MARKS | 6.00 | 2.00 |
| LENGTH OF SHORT HASH MARKS | 7.50 | 2.50 |
| LENGTH OF LONG HASH MARKS | 15.00 | 5.00 |
