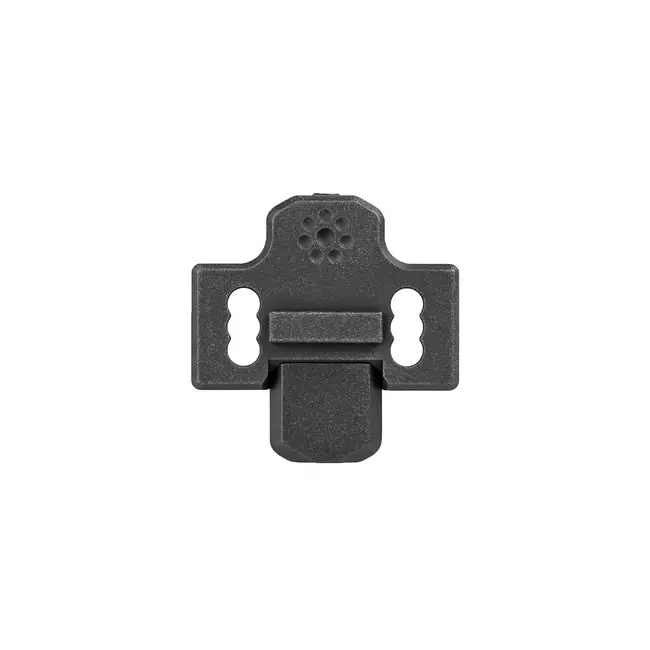

The Arisaka Inline Picatinny Mount is a low profile mount that tucks your light as close to the 1913 picatinny rail as possible. Three positions on the mount allow you to fine tune the light position including mounting underneath most IR devices. Compatible with all Cloud Defensive REINs and other lights that use Scout® style mounting.

NOTE: Not compatible with REIN Micro weapon light.

The Arisaka mount is CNC machined from 7075-T651 and 6061-T651 aluminum, and MIL-A-8625 Type III hard coat anodized. Includes all necessary screws to attach light body to mount. Made in the USA.

Length: 1.265"
Thickness: 0.2"
Weight: 0.6 oz

Requires a T27 Torx/IP27 TorxPlus and T20 Torx/IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 20 inch lbs for light body and 30 inch lbs for clamping screw with low/medium strength threadlocker (Loctite 222 or 243).

This product is covered by U.S. Patent No(s). 11385026, D999327 and other pending patents.
